PRODUCT DESCRIPTION

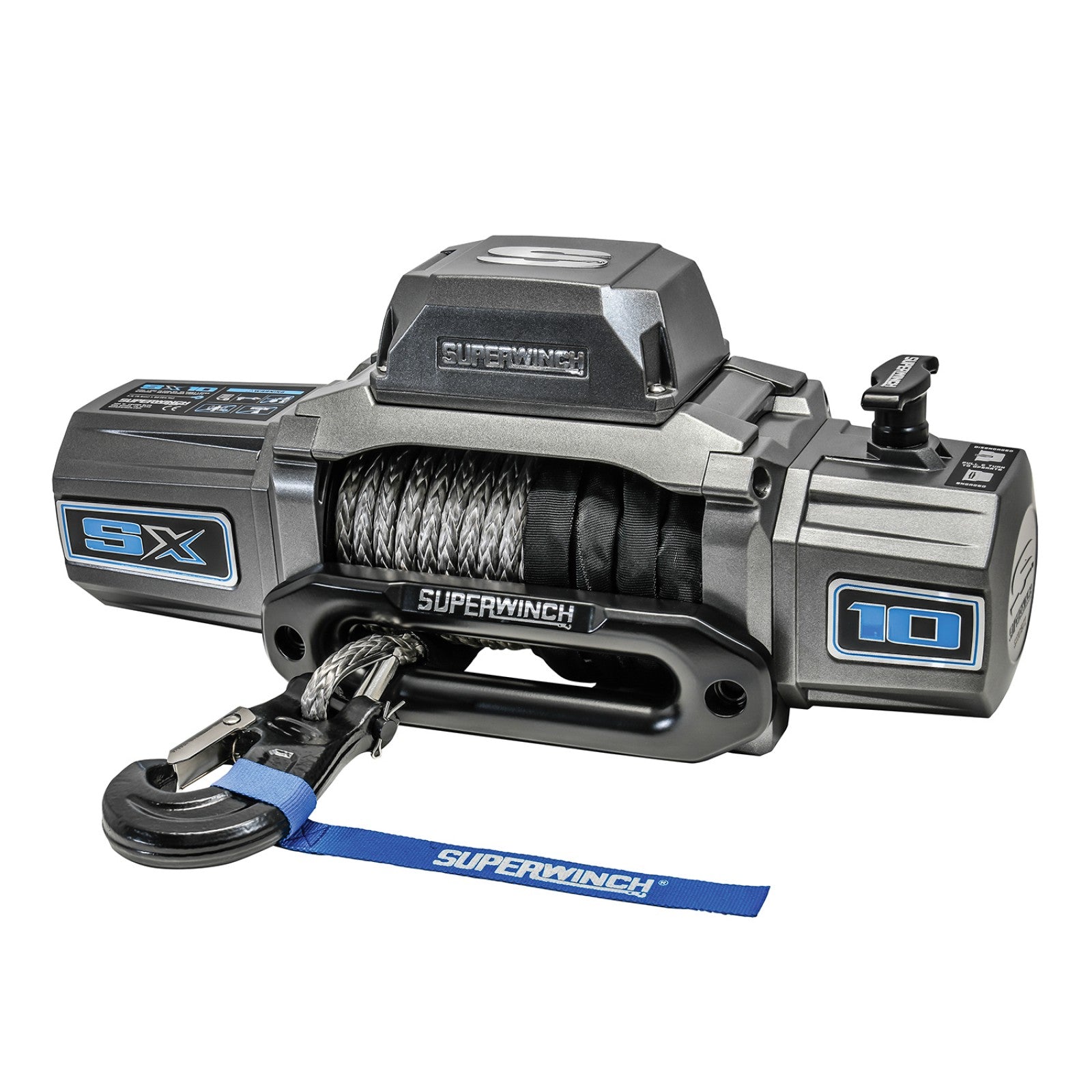

The SX10SR winch is engineered to provide users with the ideal combination of power, speed, innovation, and proven performance they demand from Superwinch. Innovative features such as a patented drum light, relocatable die-cast aluminum control box, 3/8in diameter synthetic rope, and a 12ft lighted wired remote come standard. SX Series winches exceed the most demanding standards of today's modern vehicles, while delivering an affordable and stylish design which incorporates many class-leading features not found in other high-performance winches. Providing 10,000 lbs. of raw pulling power, the new SX10000SR synthetic rope model has a sleek modern look and is built to last. With an IP68 rating for worry-free dustproof and waterproof operation, and a durable metallic graphite powder-coated finish, this winch has it all.
- 12V DC 10,000lbs rated line pull
- 5.5 HP sealed motor
- Relocatable die-cast aluminum control box
- Wireless handheld remote and 12ft handheld wired remote with rechargeable flashlight
- Pull-and turn clutch handle
- 3-stage planetary gearing with 218:1 ratio
- Patented drum light
- 3/8 in x 80ft synthetic rope
- Heavy duty clevis winch hook
- Aluminum hawse fairlead
- 100% full load holding automatic mechanical brake
- IP68-rated waterproof and dustproof winch
- Brake: Automatic, 100% Load Holding Mechanical
- Clutch: Pull and Turn, Ergonomic Free Spooling
- Dimensions: 22.04in L x 6.3in W x 9.67in H (559.8mm L x 160.02mm W x 245.62mm H)
- Drum Diameter: 2.5in (64mm)
- Drum Length: 8.75in (223mm)
- Fairlead: Aluminum Machined Hawse
- Gear Ratio: 218:1
- Gearing: 3-Stage Planetary
- Hook: Heavy-Duty, Clevis Pinned Latched
- Motor: Sealed 5.5 HP Series Wound
- Mounting Bolt Pattern: 10in x 4.5in (254mm x 114.3mm)
- Rated Line Pull: 10,000 lbs (4535.9 kg)
- Remote: Wireless Handheld and Sealed wired handheld with 12ft cord
- Rope: Synthetic 3/8in x 80ft (9.5mm x 24.4m)
- Solenoid: Sealed Solenoid, relocatable
- Warranty: Limited Lifetime Mechanical, 7 Year Limited Electrical
WARNING: Some products may contain chemicals such as DEHP, which can cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
